Network Manager GUI

You can use nmcli to configure network interfaces controlled by NetworkManager. But, honestly, I don’t see any advantage to learning the cryptic CLI instead of using the cryptic config file stuff I’ve already learned. And yet … I need my server to have /etc/resolv.conf populated when it reboots. So I figured out how to launch the KDE system settings (assuming you’ve got the X display redirected to your host) — systemsettings5

Mine takes a few minutes to render, during which time the window is black and a handful of errors are written out to the console. But it got there eventually, and I was able to edit the network interface.

Mosquitto 1.6.8 With Websockets Becomes Unresponsive

When I installed software on our new server, I got the “latest and greatest”. And have found that my mosquitto server hangs after about 20 minutes. No errors. Even strace doesn’t show anything beyond it not doing anything. I am able to use the command line utilities to confirm that the service isn’t there even though it looks like it is working.

Subscribe to the subtree of a topic:

mosquitto_sub -h mqtt.example.com -t testtopic/#

Publish a message to a topic:

mosquitto_pub -h mqtt.example.com -t testtopic/data/lisa -m "Test4"

To test WebSockets, I’ve put together a Python script that subscribes to a topic. Changing the commented lines switches between the WebSocket reverse proxy, the old and new MQTT servers via WebSockets, and the old and new MQTT servers directly in an attempt to isolate what is wrong.

import sys
import paho.mqtt.client as mqtt

def on_connect(mqttc, obj, flags, rc):
    print(f"rc: {str(rc)}")

def on_message(mqttc, obj, msg):
    print(f"{datetime.datetime.now()}: {msg.topic} {str(msg.qos)} {str(msg.payload)}")

def on_publish(mqttc, obj, mid):
    print(f"mid: {str(mid)}")

def on_subscribe(mqttc, obj, mid, granted_qos):
    print(f"Subscribed at {datetime.datetime.now()}: {str(mid)} {str(granted_qos)}")
def on_log(mqttc, obj, level, string):
    print(string)
# Client uses websockets
mqttc = mqtt.Client(transport='websockets', client_id="ljrTestingPythonScript", clean_session=False)
# Client uses MQTT directly
#mqttc = mqtt.Client(client_id="ljrTestingPythonScript", clean_session=False)

mqttc.username_pw_set("whateveruser", "wh@t3v3rP@s5w0rd")
mqttc.on_message = on_message
mqttc.on_connect = on_connect
mqttc.on_publish = on_publish
mqttc.on_subscribe = on_subscribe

#mqttc.connect("oldmosquitto.example.com", 80, 60)
mqttc.connect("newmosquitto.example.com", 80, 60)
#mqttc.connect("newmqtt.example.com", 1883, 60)
#mqttc.connect("newmqtt.example.com", 9001, 60)
#mqttc.connect("oldmqtt.example.com", 1883, 60)
#mqttc.connect("oldmqtt.example.com", 9001, 60)

mqttc.subscribe("owntracks/#", 0)

mqttc.loop_forever()

None of this helped, unfortunately. The reverse proxy couldn’t communicate with the MQTT server because it was unresponsive. Attempting to communicate with the server directly fails too.

I see a few issues in the Mosquitto repository that are similar — and the current discussion indicates that libwebsockets 3.2.0 introduced some incompatibility that they’ve addressed in Mosquitto 1.6.7 … since my problem relates to WebSockets, I wanted to try running the iteration before whatever changed.

git clone --branch v3.1.0 https://libwebsockets.org/repo/libwebsockets
cd libwebsockets
mkdir build
cd build
cmake ..
make
make install

git clone --branch v1.6.2 https://github.com/eclipse/mosquitto.git
cd mosquitto
vi config.mk # Change WITH_WEBSOCKETS:=no to :=yes
make
make install

ln -s /usr/local/lib/libwebsockets.so.14 /lib64/
ln -s /usr/local/lib/libmosquitto.so.1 /usr/lib64/libmosquitto.so.1

/usr/local/sbin/mosquitto -v -c /etc/mosquitto/mosquitto.conf

We’ll see if this is more reliable. It’s been up for 30 minutes … which is longer than the 1.6.8 iteration managed to run.

MariaDB Strangeness

I had to remove and reinstall MariaDB to upgrade from Fedora 29. I assumed Fedora 31 would have a more recent version, so I just installed the database and attempted to start it. Nope.

In journalctl

Dec 28 23:37:49 fedora123 mysql-prepare-db-dir[3977]: Database MariaDB is probably initialized in /var/lib/mysql already, nothing is done.
Dec 28 23:37:49 fedora123 mysql-prepare-db-dir[3977]: If this is not the case, make sure the /var/lib/mysql is empty before running mysql-prepare-db-dir.
Dec 28 23:37:49 fedora123 mysqld[4013]: 2019-12-28 23:37:49 0 [Note] /usr/libexec/mysqld (mysqld 10.3.20-MariaDB) starting as process 4013 …
Dec 28 23:37:49 fedora123 systemd[1]: mariadb.service: Main process exited, code=exited, status=1/FAILURE

In mariadb.log

2019-12-28 23:23:53 0 [ERROR] Fatal error: Can’t open and lock privilege tables: ‘mysql.user’ is not of type ‘TABLE’

Turns out the Fedora repo has 10.3, but the MariaDB repo that I’d used with Fedora 29 had MariaDB 10.4. After enabling the MariaDB repo and installing 10.4, the service without error.

Notes on Pigs

We’ve been thinking about raising pigs. Most of what we raise is heirloom / endangered species, and animals won’t be any different. I like Gloucestershire Old Spots, but there aren’t any breeders nearby … and I don’t want to drive to Maine to pick up a couple of pigs. I found Tamworths — a heritage breed on the Livestock Conservancy list. And two different breeders in the area — one about an hour away (http://bindelfarms.com/livestock-for-sale.html) and the other near Columbus (https://pauleyrowdyacres.blogspot.com/p/livestock-sales.html).

In case there are too many piglets — the Kidron Auction sells pigs mid-day on Thursdays (although we’d need batteries for the truck to get there with a large pig or a bunch of piglets!)

QNAP – SMB1

We’ve got an old NAS, and after the most recent Windows Update … I lost access to it. Now the NAS is really just a backup, so I never really use the NAS. I don’t generally waste my time fixing things I don’t need, but Scott wasn’t able to use the NAS from Fedora 31 either. So I tried to map the drive again and got told the NAS could only use SMB1 but Windows required 2 or 3.

I ran smb2status and, yeah, the max protocol is SMB 1.0. Simply running smb3enable or smb21enable configures Samba for SMB3 or SMB2.1 and restarts the services. We can use the QNAP Samba share from both Windows 10 and Fedora 31 now.

The end of password changes?

I knew Microsoft was publishing recommendations against forced password expiry, but it was still surprising to see this banner in my Azure admin portal. It would be nice if their message was clearer on the nuances here — especially that enabling MFA (preferably not SMS-based MFA that is just asking for someone important’s number to get hijacked) is an important component of this recommendation.

In one of my first jobs, I was a sys admin for call-center systems. As such, I interacted with a lot of the call center management and staff … and, when you know someone in IT, you ping them when the proper support route isn’t as responsive as you’d like. Which is to say I did a good bit of end-user support as well. The number of people whose password was written on a post-it note under the keyboard astonished me. This particular call center didn’t have floating seating, but two or three people would share a cube because they worked different schedules. If I’ve got to come up with a new thing I need to remember every 90 days … well, that’s how you end up with Winter19, Spring20, Summer20, Autumn20 or Maggie12, Maggie13, Maggie14 passwords. That then get posted under the keyboard so I can remember that I’m up to “14” now. Couple that with the overhead of supporting password resets for those who didn’t write it down and happened to forget the password. I’d been a proponent of long password expiry coupled with increased complexity requirements. Maybe !Maggie-19? is good for all of 2019. It’s nice to see a major IT vendor starting to realize the real-world impact of IT policies.

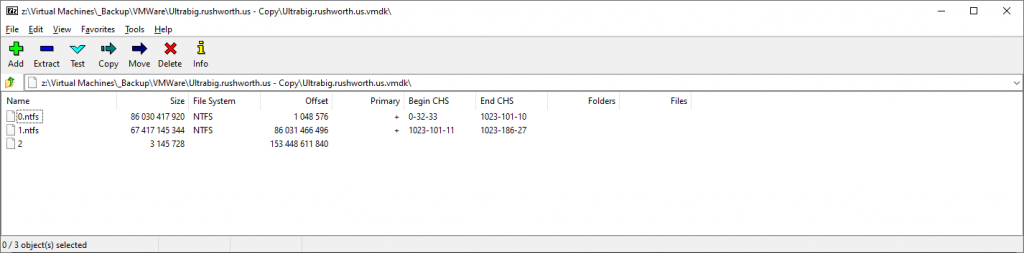

Reading VMWare and Hyper-V Disk Files

libguestfs-tools-c, which was installed when I set up the Linux VM server, can mount VMWare and Hyper-V disks.

[root@server /data/Virtual Machines/_Backup/VMWare/Win - Copy/]# guestmount -a WinHardDisk.vhd -m /dev/sda1 --ro /mnt/vhdx/
[root@server /data/Virtual Machines/_Backup/VMWare/Win - Copy/]# ls /mnt/vhdx/
AUTOEXEC.BAT COMMAND.COM FRUNLOG.TXT MSDOS.SYS 'Program Files' SETUPXLG.TXT VIDEOROM.BIN
BOOTLOG.PRV CONFIG.SYS IO.SYS 'My Documents' RECYCLED SUHDLOG.DAT WINDOWS
BOOTLOG.TXT DETLOG.TXT MSDOS.--- NETLOG.TXT SETUPLOG.TXT SYSTEM.1ST WUTemp
[root@server /data/Virtual Machines/_Backup/VMWare/Win - Copy/]# umount /mnt/vhdx

Screen Mouse Scrolling Sends Arrows

I’m finding all sorts of things we researched and sorted on the old server without documenting 🙁 Today’s discovery is that screen uses alternate screens where the mouse wheel sends arrow keys. Which means you end up going through your history instead of scrolling up a few lines. Fix? Either create a .screenrc in the user’s account or globally change /etc/screenrc (which is what we do):



[root@server-replacement ~]# diff /etc/screenrc /root/oldserver-screenrc
216a217,218
>
> termcapinfo xterm* ti@:te@
