Did you know … Powershell can create Visio diagrams!?!

I had to create a number of Visio diagrams for a new project. Since Blender has a Python API, I wondered if I could do something similar with Visio. There does appear to be an VSDX library for Python, I also found that Powershell can just control the Visio instance on my laptop.

This is a demo creating a diagram for a simple web server with a database back end. You can, however, use any stencils and make more complicated diagrams. The lines aren’t great — part of my Visio diagramming process is moving things around to optimize placement to avoid overlapping and confusing lines. The programmatic approach doesn’t do that, but it gets everything in the diagram. You can then move them as needed.

# Sample Visio diagram: Firewall -> Load Balancer -> Web Servers -> Database
# Auto-discovers stencils
# Works on Windows PowerShell 5.x

$ErrorActionPreference = "Stop"

# Output
$docName = "WebApp-LB-Firewall-DB.vsdx"
$outPath = Join-Path $HOME "Documents\$docName"

# Start Visio
$visio = New-Object -ComObject Visio.Application
$visio.Visible = $true

# New document/page
$doc = $visio.Documents.Add("")
$page = $visio.ActivePage
$page.Name = "Architecture"
$page.PageSheet.CellsU("PageWidth").ResultIU  = 22.0
$page.PageSheet.CellsU("PageHeight").ResultIU = 14.0

# -------------------------------
# Stencil discovery and loading
# -------------------------------

$searchRoots = @(
    "$env:PROGRAMFILES\Microsoft Office\root\Office16\Visio Content",
    "$env:PROGRAMFILES\Microsoft Office\root\Office16\Visio Content\1033",
    "$env:ProgramFiles(x86)\Microsoft Office\root\Office16\Visio Content",
    "$env:ProgramFiles(x86)\Microsoft Office\root\Office16\Visio Content\1033",
    "$env:PROGRAMFILES\Microsoft Office\root\Office15\Visio Content",
    "$env:ProgramFiles(x86)\Microsoft Office\root\Office15\Visio Content",
    "$env:PROGRAMFILES\Microsoft",
    "$env:ProgramFiles(x86)\Microsoft",
    "$env:PROGRAMFILES",
    "$env:ProgramFiles(x86)"
) | Where-Object { Test-Path $_ }

# Keywords to select useful stencils (filename match, case-insensitive)
$stencilKeywords = @("network","server","compute","computer","azure","cloud","firewall","security","database","sql","load","balancer","web","iis")

function Find-StencilFiles {
    param([string[]]$roots, [string[]]$keywords)
    $results = @()
    foreach ($root in $roots) {
        try {
            Get-ChildItem -Path $root -Filter *.vssx -Recurse -ErrorAction SilentlyContinue | ForEach-Object {
                $fname = $_.Name.ToLower()
                foreach ($kw in $keywords) {
                    if ($fname -match $kw) { $results += $_.FullName; break }
                }
            }
        } catch { }
    }
    $results | Select-Object -Unique
}

function Load-Stencils {
    param([string[]]$files)
    $loaded = @()
    foreach ($file in $files) {
        try {
            Write-Host "Loading stencil: $file"
            $loaded += $visio.Documents.OpenEx($file, 64) # read-only
        } catch {
            Write-Warning "Could not load stencil: $file"
        }
    }
    foreach ($docX in $visio.Documents) {
        if ($docX.FullName -ne $doc.FullName) { $loaded += $docX }
    }
    $loaded | Sort-Object FullName -Unique
}

$files = Find-StencilFiles -roots $searchRoots -keywords $stencilKeywords
$stencils = Load-Stencils -files $files

if (!$stencils -or $stencils.Count -eq 0) {
    Write-Warning "No stencil files loaded automatically. Fallback rectangles will be used."
} else {
    Write-Host "`nLoaded stencils:" -ForegroundColor Cyan
    foreach ($s in $stencils) { Write-Host " - $($s.FullName)" }
}

# -------------------------------
# Master selection helpers
# -------------------------------

function List-Masters {
    foreach ($st in $stencils) {
        Write-Host ("Stencil/Doc: {0}" -f $st.Name) -ForegroundColor Cyan
        foreach ($m in $st.Masters) {
            Write-Host ("  - {0} (NameU: {1})" -f $m.Name, $m.NameU)
        }
    }
}

function Get-MasterByPattern([string[]]$patterns) {
    foreach ($st in $stencils) {
        foreach ($m in $st.Masters) {
            foreach ($p in $patterns) {
                if ($m.NameU -match $p -or $m.Name -match $p) {
                    Write-Host ("Selected master '{0}' from '{1}' for pattern '{2}'" -f $m.Name, $st.Name, $p) -ForegroundColor Green
                    return $m
                }
            }
        }
    }
    return $null
}

# Drop master centered at x,y; keep default size; label it
function Add-Device([double]$x,[double]$y,[string]$label,[string[]]$patterns,[double]$fontSize=10) {
    $m = Get-MasterByPattern $patterns
    if ($null -eq $m) {
        Write-Warning ("No master matched patterns: {0}. Using fallback rectangle." -f ($patterns -join ", "))
        $w = 2.0; $h = 1.2
        $shape = $page.DrawRectangle($x - ($w/2), $y - ($h/2), $x + ($w/2), $y + ($h/2))
    } else {
        $shape = $page.Drop($m, $x, $y)
    }
    $shape.Text = $label
    $shape.CellsU("Char.Size").FormulaU = "$fontSize pt"
    return $shape
}

# Simple transparent containers (thin gray outline; sent behind shapes)
function Add-Container([double]$x,[double]$y,[double]$w,[double]$h,[string]$text) {
    $shape = $page.DrawRectangle($x, $y, $x + $w, $y + $h)
    $shape.CellsU("LineColor").FormulaU = "RGB(180,180,180)"
    $shape.CellsU("LineWeight").FormulaU = "1 pt"
    $shape.CellsU("FillForegnd").FormulaU = "RGB(255,255,255)"
    $shape.CellsU("FillForegndTrans").ResultIU = 1.0
    $shape.Text = $text
    $shape.CellsU("Char.Size").FormulaU = "12 pt"
    try { $shape.SendToBack() } catch {}
    return $shape
}

# Connector
function Connect($fromShape,$toShape,[string]$text="") {
    $conn = $page.Drop($visio.Application.ConnectorToolDataObject, 0, 0)
    $conn.CellsU("LineColor").FormulaU = "RGB(60,60,60)"
    $conn.CellsU("LineWeight").FormulaU = "0.75 pt"
    $fromShape.AutoConnect($toShape, 0, $conn)
    if ($text) { $conn.Text = $text }
    return $conn
}

# -------------------------------
# Diagram content
# -------------------------------

# Title
$title = $page.DrawRectangle(1.0, 13.4, 21.0, 13.9)
$title.Text = "Web App Architecture: Firewall -> Load Balancer -> Web Servers -> Database"
$title.CellsU("Char.Size").FormulaU = "14 pt"

# Patterns for official icons (broad to match common stencils)
$patFirewall    = @("Firewall|Security|Shield|Azure.*Firewall")
$patLoadBalancer= @("Load.*Balancer|Application.*Gateway|LB|Azure.*Load.*Balancer")
$patWebServer   = @("Web.*Server|IIS|Server(?! Rack)|Computer|Windows.*Server")
$patDatabase    = @("Database|SQL|Azure.*SQL|DB|Cylinder")

# Containers (optional zones)
$dmz     = Add-Container 1.0 10.8 20.0 2.0 "DMZ (Edge/Ingress)"
$webtier = Add-Container 4.0 6.8 14.0 3.2 "Web Tier"
$dbtier  = Add-Container 8.0 3.5 10.0 2.8 "Database Tier"
$clients = Add-Container 1.0 1.0 6.0 2.2 "Clients"

# Devices (kept at native size; spaced widely)
# Edge/Ingress
$fw      = Add-Device 3.0 11.8 "Firewall" $patFirewall 10
$lb      = Add-Device 8.0 11.8 "Load Balancer" $patLoadBalancer 10

# Web servers (pair)
$web1    = Add-Device 9.5 8.0 "Web Server 1\nIIS" $patWebServer 10
$web2    = Add-Device 13.5 8.0 "Web Server 2\nIIS" $patWebServer 10

# Database
$db      = Add-Device 13.0 4.6 "Database\nSQL" $patDatabase 10

# Clients
$client1 = Add-Device 2.0 1.8 "Client\nPC" @("Desktop|PC|Computer|Laptop") 10
$client2 = Add-Device 5.0 1.8 "Client\nServer" @("Server(?! Rack)|Windows.*Server|Computer") 10

# Connectors (flow: clients -> firewall -> LB -> web servers -> database)
Connect $client1 $fw "HTTPS"
Connect $client2 $fw "HTTPS"
Connect $fw $lb "Allow: 443"
Connect $lb $web1 "HTTP/HTTPS"
Connect $lb $web2 "HTTP/HTTPS"
Connect $web1 $db "SQL (1433/Encrypted)"
Connect $web2 $db "SQL (1433/Encrypted)"

# Save
$doc.SaveAs($outPath)
Write-Host "Saved Visio to: $outPath"

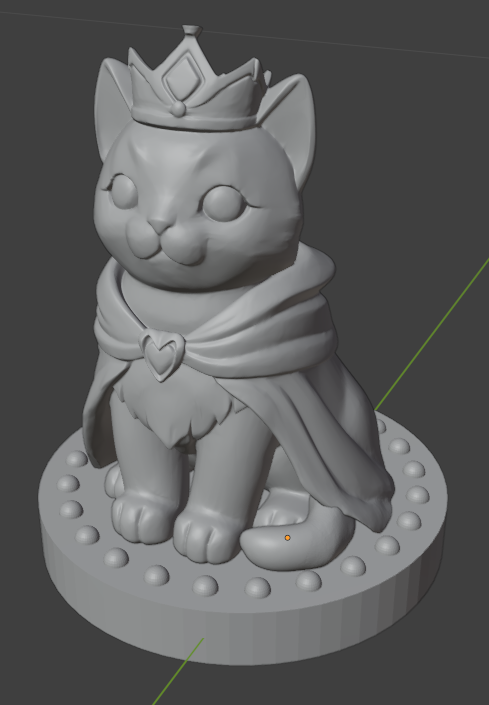

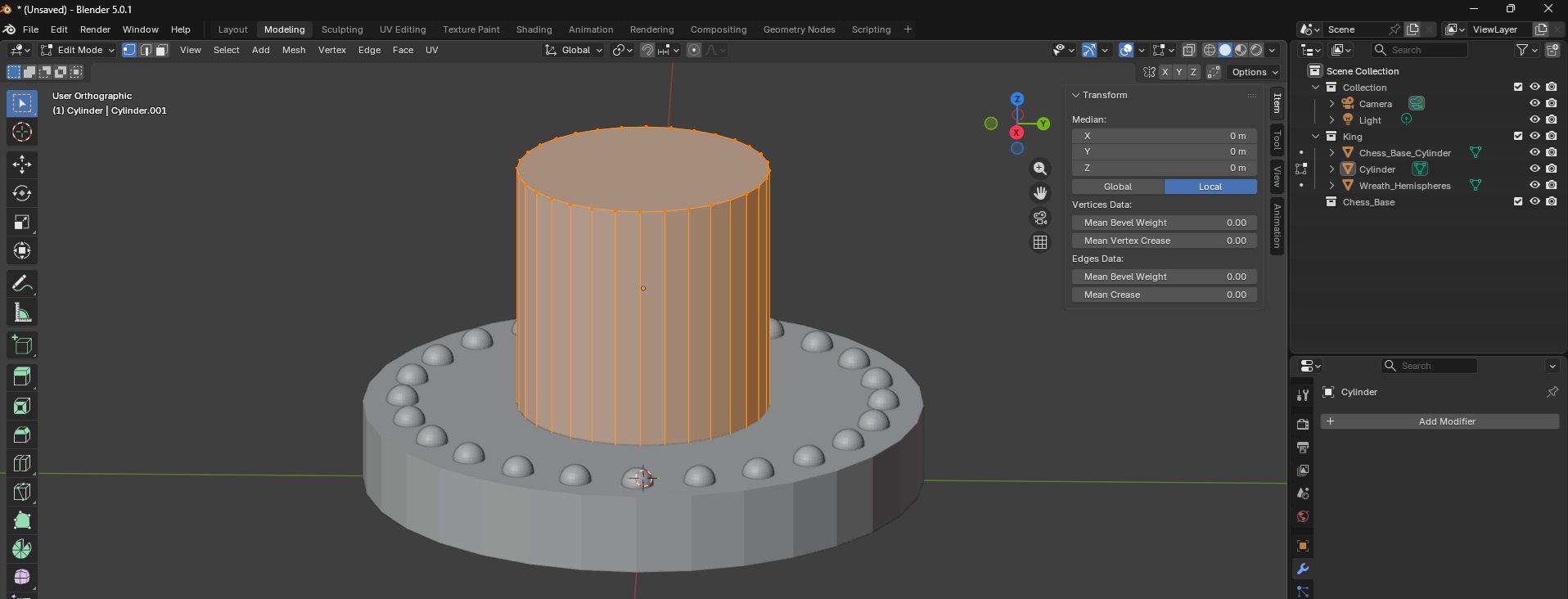

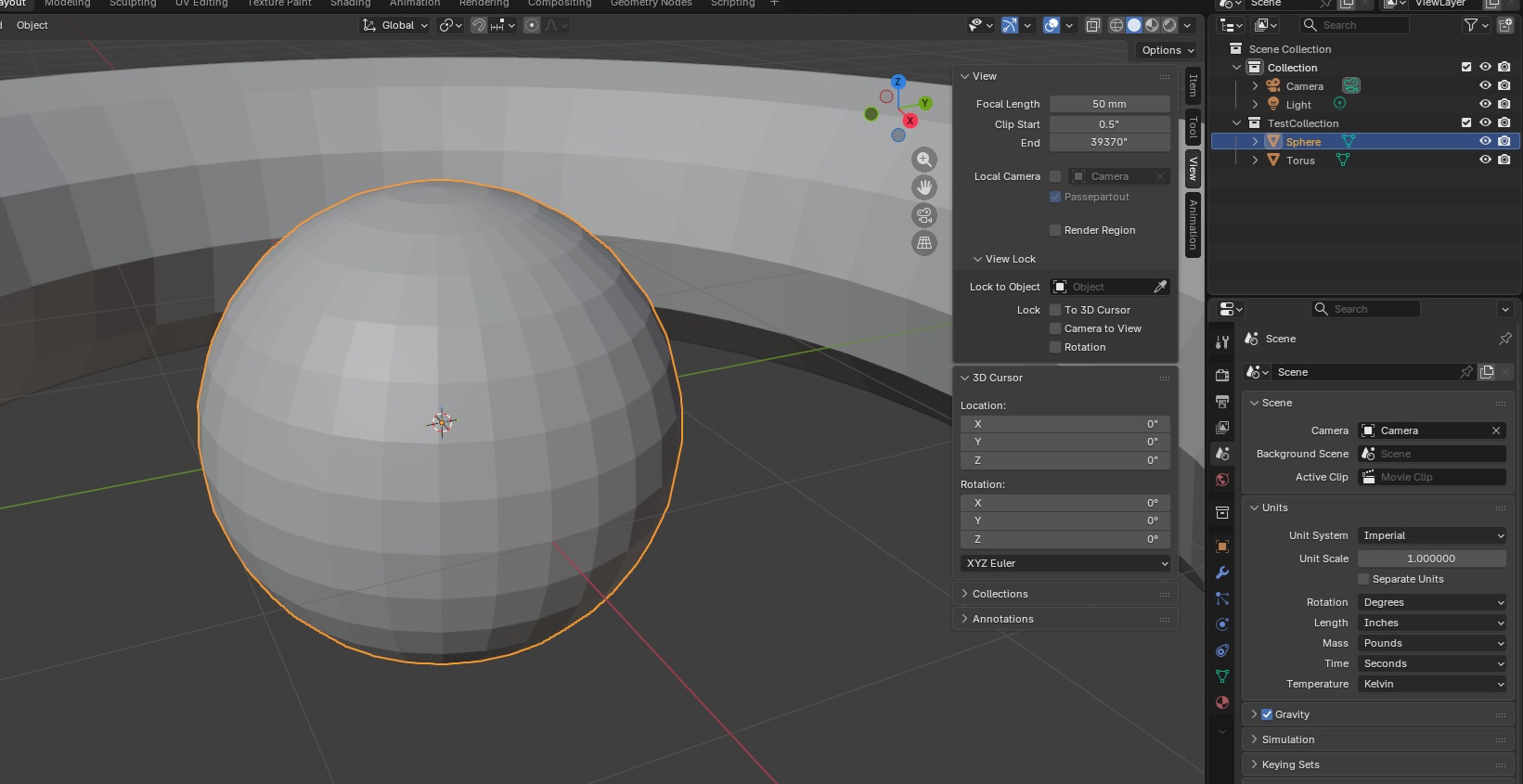

Blender – Python Script to Build Bases for Chess Pieces

Originally, I wanted to sculpt the entire thing in python, but it appears that the programmatic interface only works in defined shapes. I guess I could construct millions of tiny triangles? polygons? to create cats … but I suspect that using the actual sculpting tools is going to be the easier approach.

However, the base of each piece seems perfect for a script. This will ensure consistency in my chess pieces (and let me play around with the Python approach since I think it is really cool that Blender takes Python code!). I am making decorated cylinders onto which my figures will sit.

import bpy
import bmesh
import math

INCH = 0.0254  # meters per inch

params = {
    # Cylinder base size
    "base_diameter_in": 1.75,
    "base_height_in": 0.25,

    # Wreath hemispheres
    "hemi_count": 24,
    "hemi_radius_in": 0.05,
    "hemi_offset_in": 0.125,  # inward from base outer edge

    # Collection
    "collection_name": "Chess_Base",
}

def inch(v):
    return v * INCH

def ensure_collection(name):
    if name in bpy.data.collections:
        return bpy.data.collections[name]
    col = bpy.data.collections.new(name)
    bpy.context.scene.collection.children.link(col)
    return col

COL = ensure_collection(params["collection_name"])

def build_base():
    base_r = inch(params["base_diameter_in"]) / 2.0
    base_h = inch(params["base_height_in"])
    # Place the base so its top is at Z = base_h (sitting on Z=0 plane)
    bpy.ops.mesh.primitive_cylinder_add(radius=base_r, depth=base_h, location=(0, 0, base_h / 2.0))
    base = bpy.context.active_object
    base.name = "Chess_Base_Cylinder"
    # Link explicitly to target collection (in case active collection differs)
    if base.name not in COL.objects:
        COL.objects.link(base)
    return base

def make_hemisphere_mesh(radius_m, segments=32, rings=16):
    bpy.ops.mesh.primitive_uv_sphere_add(radius=radius_m, segments=segments, ring_count=rings, location=(0, 0, 0))
    sph = bpy.context.active_object
    bm = bmesh.new()
    bm.from_mesh(sph.data)
    # Keep the top hemisphere: delete vertices with z < 0 (tolerance to avoid floating error)
    to_delete = [v for v in bm.verts if v.co.z < -1e-7]
    if to_delete:
        bmesh.ops.delete(bm, geom=to_delete, context='VERTS')
    bm.to_mesh(sph.data)
    bm.free()
    hemi_mesh = sph.data
    hemi_mesh.name = "Hemisphere_Mesh"
    # Remove the temporary object but keep the mesh datablock
    bpy.data.objects.remove(sph, do_unlink=True)
    return hemi_mesh

def build_wreath_hemispheres(hemi_mesh):
    base_r = inch(params["base_diameter_in"]) / 2.0
    base_h = inch(params["base_height_in"])
    ring_r = base_r - inch(params["hemi_offset_in"])
    count = params["hemi_count"]

    hemis = []
    for i in range(count):
        theta = (i / count) * 2.0 * math.pi
        cx = ring_r * math.cos(theta)
        cy = ring_r * math.sin(theta)
        obj = bpy.data.objects.new(f"Hemi_{i:02d}", hemi_mesh)
        # Flat face of hemisphere (its equator at local Z=0) sits on base top (Z=base_h)
        obj.location = (cx, cy, base_h)
        COL.objects.link(obj)
        hemis.append(obj)

    # Join hemispheres into a single object
    bpy.ops.object.select_all(action='DESELECT')
    for o in hemis:
        o.select_set(True)
    bpy.context.view_layer.objects.active = hemis[0]
    bpy.ops.object.join()
    wreath = bpy.context.active_object
    wreath.name = "Wreath_Hemispheres"
    return wreath

def build_all():
    base = build_base()
    hemi_mesh = make_hemisphere_mesh(inch(params["hemi_radius_in"]))
    wreath = build_wreath_hemispheres(hemi_mesh)
    print("Built:", base.name, wreath.name)

build_all()
