Tag: Azure DevOps

Azure DevOps Maven Feed — Deleted Package

Someone deleted one of the packages from the Azure DevOps Maven feed … figured it would be easy enough to just re-publish the package. And they got an error:

409 Conflict – The version 1.2.3 of package.example.com has been deleted. It cannot be restored or pushed. (DevOps Activity ID: E7E4DEB1551D) -> [Help 1]

There’s some not-outlandish logic behind it because they don’t want half of the people to have this version 1.2.3 and the other half to get that version 1.2.3 … if it’s your code, just make it version 1.2.4. Unfortunately, this logic doesn’t hold up well when you’re publishing someone else’s package. Not like I can say “oops, we’ll use 23.13 now”. But you can restore deleted packages — from the feed, go into the recycle bin

Check off the packages that were deleted in error & restore them



Creating an Azure DevOps Work Item From a Teams Message

You can use Power Automate to create an ADO work item (bug, user story, etc) when a user posts into specific Teams channel.

Log into Power Automate and create a new workflow. Find a Teams trigger that suits your need – in my case, I wanted to use a key word (you could even use different key words to create work items in different projects or with different content). Note that automation cycles accrue based on execution — so if you elect to link up to a busy Teams channel and filter for keywords to indicate you want an ADO item created, you may be “wasting” workflow cycles. In our case, I have a “user group” Teams space and set up a special channel where users can submit bug and feature requests. This means workflow cycles are accrued when someone specifically wishes to create an ADO item not when messages are posted into the user group’s general chat channels.

You can source messages from channels or group chats in the “Message type” selection. You cannot use hash-tags as key words! The workflow execution reports a gateway error. Select the Team and channel(s) that you want the workflow to monitor.

Add a new step to “create a work item” from Azure DevOps

Configure the project into which you want to create the work item – the organization and project name, the type of work item, and content of the work item.

If you want to set priority, add an assignment, etc – click on “Show advanced options”. I added a few fields to provide a clue as to where the bug report came from.

Save the workflow and post a message in your channel with the key word. Go into the ADO project work items; your Teams-initiated bug should be there.



Example Azure DevOps File Deployment

To automatically update files from your repository on your server, use a release pipeline. For convenience, I use deployment groups to ensure all of the servers are updated.

Creating a deployment group

Under the Project, navigate to Pipelines and “deployment groups”. Click “New” and provide a name for the deployment group.

Now click into the deployment group and select “Register”

Since I have a Linux server, I changed the “Type of target to register” drop-down to “Linux”. Copy the command and run it on your server (I don’t run literally what MS provides – I break it out into individual commands so I can make a folder named what I want it to be named and just run the part of the command that registers a service with systemctl.

Run the agent – for demonstration purposes, I am using the run.sh script to launch the agent. This outputs details to my console instead of a log file.

If you have multiple servers to which you want to deploy the files, install and run an agent on each one.

Create the release pipeline

Now we will build the pipeline that actually copies files over to the agent. Under Pipelines, navigate to “Releases”. Select “New” and create a “New release pipeline”. Start with an empty job.

You’ll be asked to name the first stage of the deployment pipeline – here, I’m calling it “Deploy Files to Servers”. Close out of the Stage window to see the pipeline.

Click the “+ Add” next to Artifacts to link an artifact to the deployment

If you have a build pipeline, you can link that as the artifact. Since I am just copying files, I selected the “Azure Repo” and configured the test project that contains the files I wish to deploy to my servers.

Click “Add”

Back in the pipeline, click the “1 job, 0 task” hyperlink to create a file deployment task.

We don’t need the “Agent job”, so click on it and click “Remove”

Select the hamburger menu next to “Deploy files to servers” and select “Add a deployment group job”

Click the “Deployment group” dropdown and select the deployment group that contains the servers to which you want to deploy files. You can add tags to limit deployment to a subset of the deployment group – I don’t do this, but I have seen instances where “prod” and “dev” tags were used and all servers in both the prod and dev environment were part of the same deployment group.

Click the “+” on the “Deployment group job” item to add a task.

Find the “Copy files” task and click “Add” to create a task to copy files.

Click on the “Copy files to:” item to configure the task. The source folder is the Azure repo, and the target folder is the path on the server.

Click “Save” to save the task, then click “OK” to save the task.

Now create a release – click the “Create a release” button

ok

When the deployment runs, the agent will show the job running.

Once the deployment completes, the files are on the server.

Scheduling Release

In the pipeline, you can click on “Schedule set” to schedule new releases.

Enable the schedule, set a time – I select to only schedule the release if the source or pipeline has changed … if I’ve not updated files in the repo, there’s no need to redeploy the files. Remember to save your pipeline when you add the schedule.

Azure DevOps – Changing Work Item Type

I had to reorganize a lot of my work items in a way that required items not to be what they were. Fortunately, there’s a mechanism to change work item type. Within the work item, click on the ellipsis to access a menu of options. Select “Change type …”

Select the item type you want – I record the reason I needed the new type for posterity – then click “OK”. Save the work item and re-open it.

The one thing I’ve noticed is that fields that don’t exist on an item type (e.g. “effort” on “feature” items) are still present on the new item type even when that field does not normally display (e.g. “effort” on “user story” items).



Azure DevOps – Features, User Stories, and Story Points

I had wanted to classify my ADO work items as “features” (i.e. something someone asked to be added to an application), “bugs” (i.e. some intended functionality that was not working as designed). Bugs have a story point field, but features do not appear to have their own story point field. They, instead, are a roll-up of the story points of their subordinate user stories. Which makes sense except that I’ve now got to have two work items for every feature. Rolling up larger requests into sprint-sized work units is how we use epics. So I’ve instead found myself with user stories tagged with “features” that fall into epics (or don’t in the case of a small feature request).



ADO – Migrating a Repository to Azure Repos (and keeping your commit history)

The most direct way to migrate a repo into Azure Repos is to create a new, blank repository. This may mean making a new project. From the organization’s main page, click “New project”

Or it may mean making a new repo in an existing project. From an existing repo, click the drown-down next to the repo name and select “New repository”

Name the repository but don’t add a README. We want a blank repo

Note the URL to the repository – in this case, it’s https://ado0255@dev.azure.com/ado0255/History%20Test/_git/Another%20History%20Test

Find the URL for your existing Git repo – if you cd into the project’s folder and run “git remote -v”, you will get a list of the repos. Make a new folder somewhere – this is a temporary staging area to move the data from your existing repo over to the new Azure Repo. Change directories into your new folder. Run git clone –mirror URLToOldRepo

You will see data being downloaded from your git server.

Change directories into the folder that just got downloaded. You won’t see your code like you normally do when you clone a git repo. You’re looking at the underlying git stuff that makes up the repo. You’re code is all in there, as are all of the branches and commit history.

Now add the new Azure Repo as a remote – in this case, I’m naming the remote “ado”. Then run “git push ado –all” to push everything up to the new Azure Repo.

Stuff will transfer – you may be prompted to log into your ADO repository first. Eventually, you’ll see new branches being created on the remote and the process will complete.

Refreshing the Azure Repo, you’ll now see the files.

Selecting “Commits” will display the commit history.

Anyone else using the repo will need to add the new remote. Use “git remote rm origin” to remove the existing origin, then use “git remote add origin url” to add the new Azure Repo as origin.

ADO – Cleaning up test repos and projects

I find the process to delete repositories and projects to be nonintuitive. Since I create a lot of projects and repos for testing and documentation, it’s nice to be able to clean them up when I’m done!

To delete an Azure Repo, navigate to a repo and select the drop-down next to the repo name. Select “Manage repositories”

With your mouse over a repository, there’s a hamburger menu at the right-hand side of the listing. Click it and select “Delete”

You’ll need to type the repository’s full name to activate the delete button.

To delete a project, go to the organization’s home page and select “Organization Settings” from the lower left-hand corner of the screen.

Select “Projects” from the left-hand navigation bar

With your mouse over the project listing, you’ll have a hamburger menu. Click it and select “Delete Project”

You’ll need to type the project name to activate the delete button.



ADO Notifications

I’ve been underwhelmed with the notifications I get from Azure DevOps – there are a lot of build-centric notifications, but I don’t use ADO for builds or deployment apart from playing around. And I really don’t care if the silly test project I set up to build and deploy a website worked, failed, or whatever. I was thinking about hooking whatever they’re calling Flow this week up to ADO and building notification workflows.

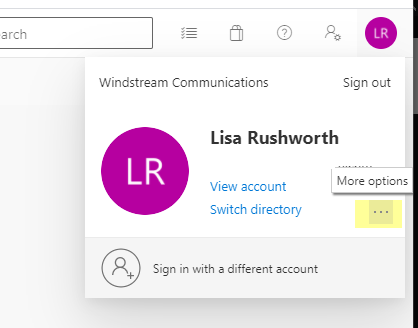

Fortunately, a coworker mentioned that you can customize notifications in ADO … which, I’d spent a few seconds poking around and didn’t see anything. But I spent more than a few seconds this time and happened across this little ellipsis on the card that pops up when I click the circle with my initials in it. More options!

A new menu flies out; and, look, there’s “Notifications”

Exactly as I’ve observed, there are a lot of build-centric alerts. So I created a new subscription.

Here’s a subscription that I hope will notify me when items assigned to me have updates to activity or comments.
